What is secc EV?
Supply Equipment Communication Controller.
Our Supply Equipment Communication Controller (SECC) acts as the main controller for the charging process.

What is a SECC?
SECC may refer to: Single Edge Contact Cartridge, a connector for microprocessors. SECC (metal), a low-cost sheet metal often used for computer cases. Scottish Exhibition and Conference Centre, now known as the SEC Centre, an exhibition space in Glasgow, Scotland.

This is full functional EV charging communication controller for Electric Vehicle supports Bi-direction Vehicle to Grid communication (V2G Protocol) software for Electric Vehicle.
plunk for ISO/IEC15118, DIN70121, SAE2847-2,SAE J2931-4, DIN70121
Error handling for all exceptions.
Easy Control & Monitoring using RS232
Compliant test with CCS EV Charger
Operation Temperature -40 ~ +85ºC

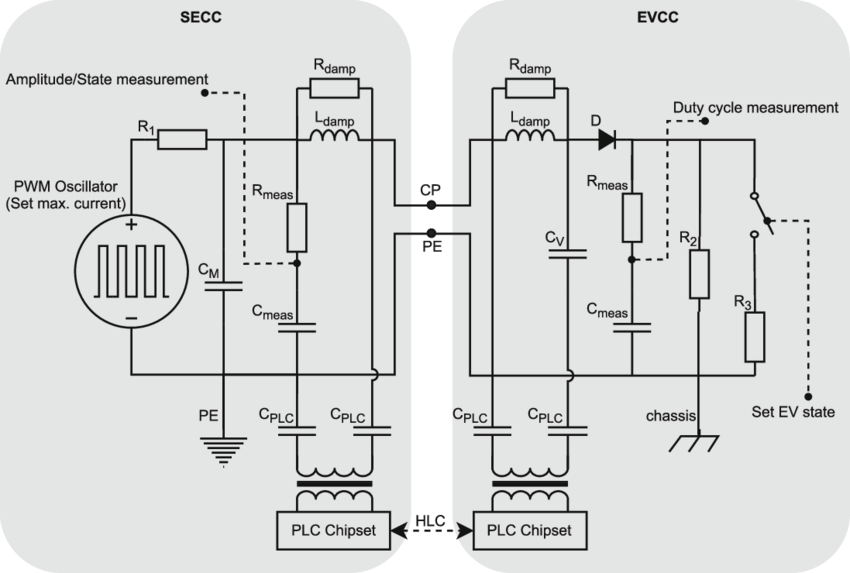

SECC and EVCC circuits for basic signalling and HLC according to IEC 61851-1 ,AC/DC test device for electric vehicle charging infrastructure communication.

Plunk for ISO/IEC15118, DIN70121, SAE2847 EVCC Communication Controller

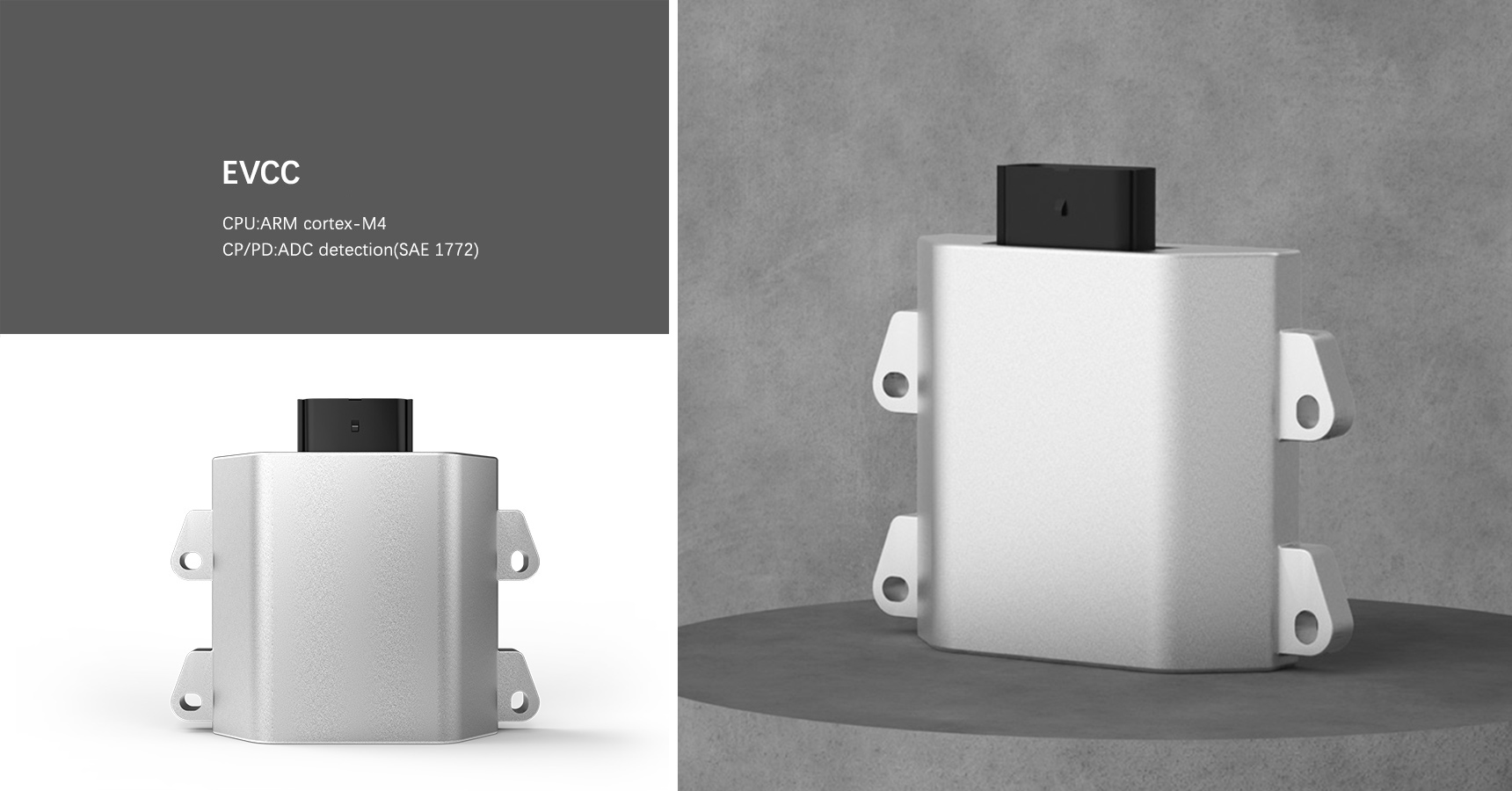

Meet PLC AC/DC EV Charging Communication Controller (EVCC)
EV Charger Evcc Communication Controller
GQEVPLC-V3.3 PLC Communication Moudle EV Charger EVCC Communication Controller.

MIDA & RNL Is solution provider specializing in providing charging and discharging solutions for EV, EV chargers and Battery power supply and other industries(For export). With electronic software technology as the core, RNL is In-depth study of EU charging Standard, US charging standard, CHAdeMO communication protocol. It is the first enterprise in the industry to apply this technology, and the first Enterprise in China to pass the communication test certification such as TUV and DERKA.

SECC and EVCC circuits for basic signalling and HLC according to IEC 61851-1

MIDA & RNL provide customers with standard solutions based on the original GB/T27930 converted into CCS1, CCS2, and CHAdeMO, and provide highly Customized private protocol solution as well.

The main product-communication protocol converter EVCC and SECC series products, have intellectual property patents. Relying on the dominant Position in the China new energy industry, RNL′s solution have exported to more than 50 countries and regions, more than 200 cities.

The large-scale deployment of charging infrastructure poses challenges to the distribution grid stability. In Hamburg, the project Electrify Buildings for Electric Vehicles (ELBE) implements and tests a demand side management communication protocol that allows the distribution grid operator to reduce the charging power of electric vehicle charging stations if necessary. For this purpose, a test device capable of testing the signal chain as well as a real load reduction is presented for DC charging infrastructure. The standardized high-level communication protocols are described. With the charger’s power electronics located in the DC charging station, the need for a battery emulation arises, which is also discussed. Finally, a novel concept for a mobile and modular test setup for combined testing signal and real load reduction of AC and DC charging infrastructure is presented.
