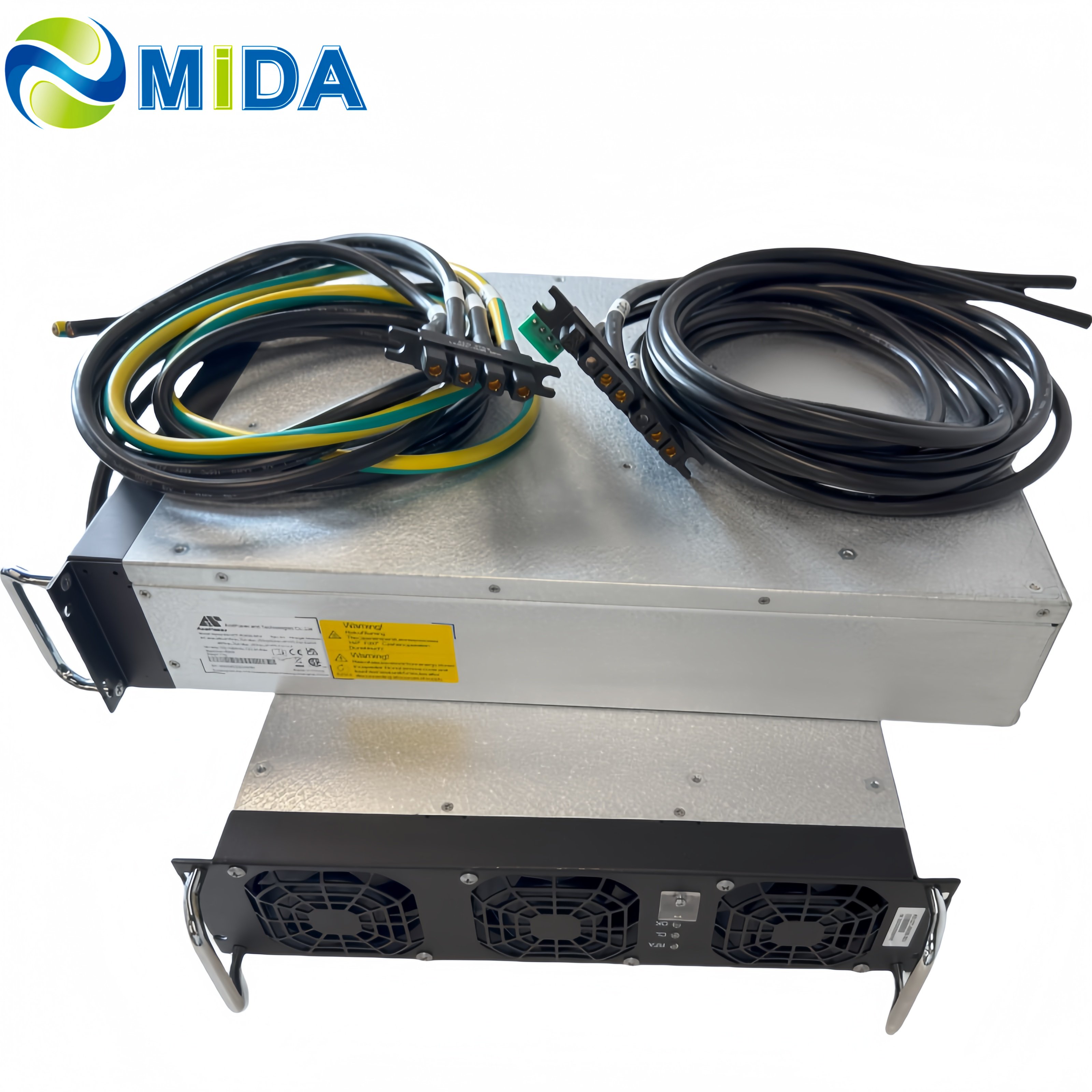

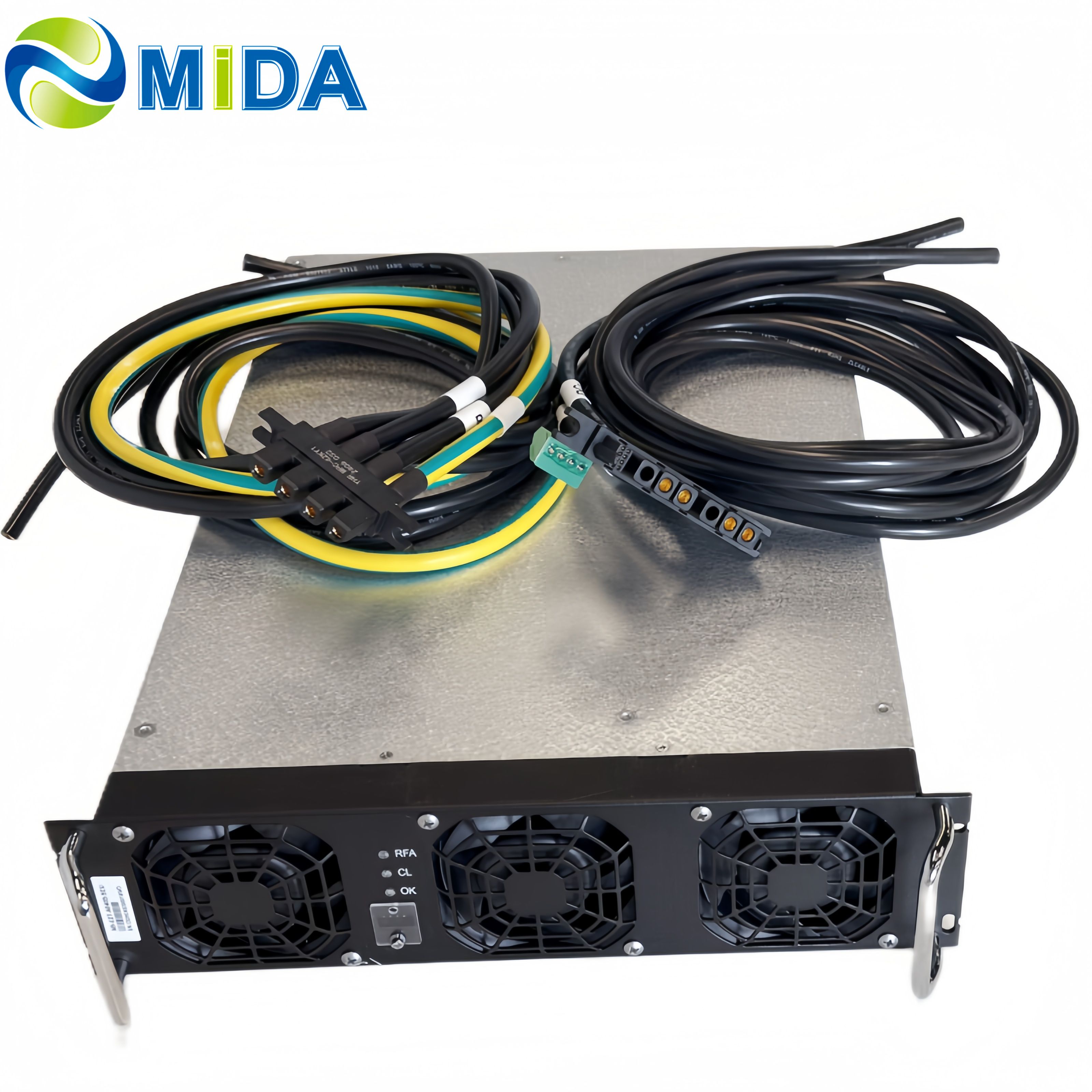

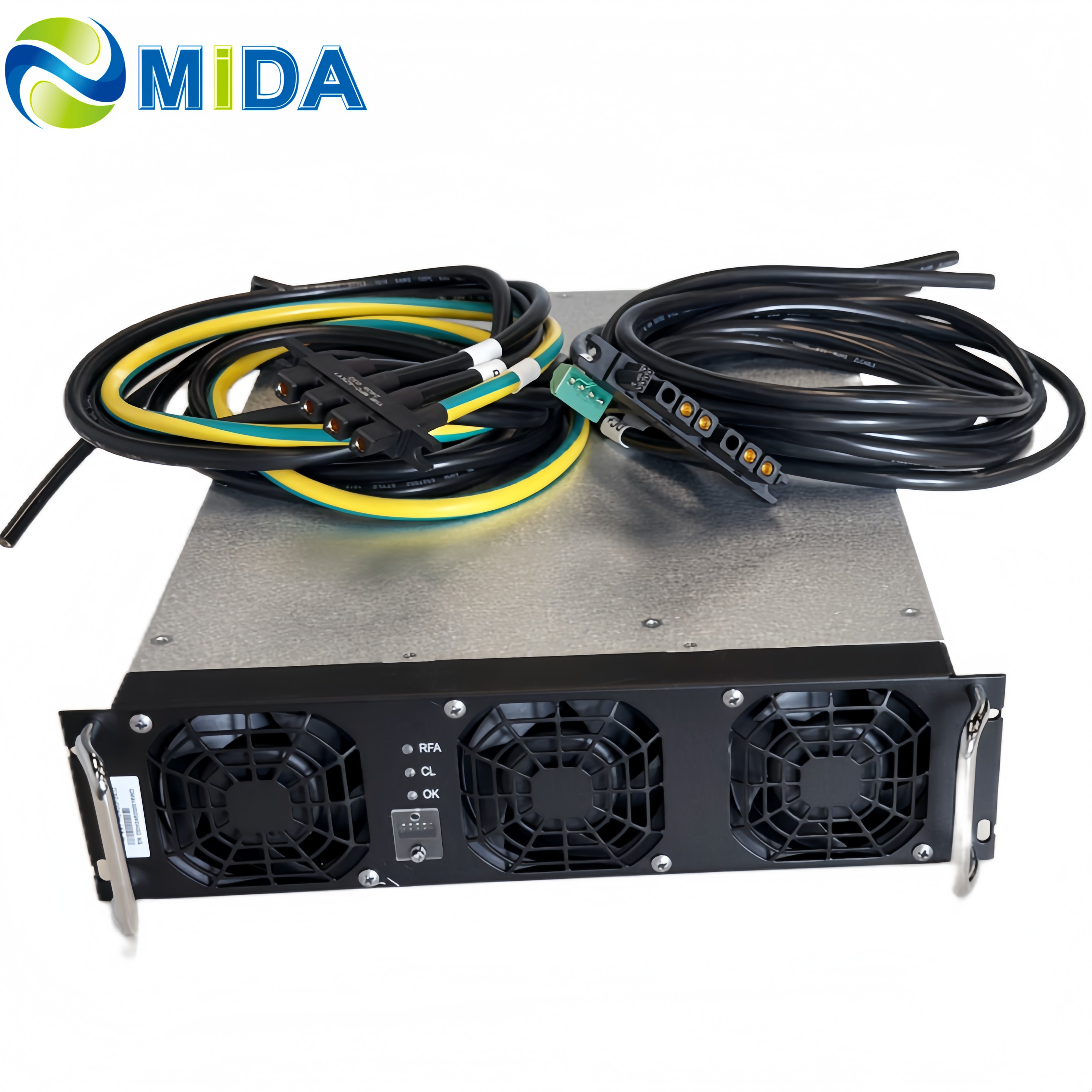

LRG1K0100G 30kW Power Module Liquid Cooling Charging Module for 480kW 600kW DC Charger Station

LRG1K0100G 30KW Liquid Cooling Charging Module Power Module.LRG1K0100G is specially designed for EV DC chargers with liquid cooling requirement. The module is equipped with high efficiency, zero noise, high power.

Model No.: LRG1K0100G

Input Voltage: 260VAC~530VAC

Rated Output Power: 40kW

Output Voltage Range: 150Vdc～1000Vdc

Peak Efficiency: ≥ 96%

Power Factor: ≥0.99

Current Regulation Accuracy: ≤±1%

Communication Protocol: CAN

Operating Temperature: －40℃～＋75℃

Inquiry WhatsApp Skype Email

Product Detail

Product Tags

ADVANCED TECHNOLOGY

This LRG1K0100G 30kW Charging Module Liquid Cooling Charging Module support DC and DC dual input mode, which combines battery charging by the power grid and vehicle charging by battery. At the same time, it meets the size requirements of three unified module of State Grid.

High Efficiency and Energy Conservation

Wide output constant power range

Ultra-low standby power consumption

Ultra-wide operating temperature

20KW EV Charger Module

20KW EV Charger Module ( two-input)

30KW EV Charger Module

40KW EV Charger Module

ULTRA WIDE OUTPUT VOLTAGE RANGE
COMPATIBLE WITH EVERY EV BATTERY CAPACITY REQUIREMENTS

50-1000V ultra wide output range, meeting car types in the marketand adapt to high voltage EVs in future.

● LRG1K0100G LRG1K0100G liquid cooled power module Compatible with the existing 150V-1000Vdcplatform and provides full power charging for future development above 1000V which is able to avoid investment on high voltage EV charger upgrade construction.

● Support CCS1, CCS2, CHAdeMO, GB/T and energy storage system.

● LRG1K0100G liquid cooling charging module Meet the future trend of high-voltage charging of electric vehicles, compatible with various charging applications and car types.

INTELLIGENT CONTROL FOR SAFE AND
RELIABLE CHARGING MODULE

Specifications

30KW LRG1K0100G Liquid Cooling Charging Module
Model No.		LRG1K0100G
AC Input	Input Rating	260Vac ～ 530Vac,three phase + Protective Earth
	AC Input Connection	3L + PE
	Input Frequency	50/60±5Hz
	Input Power Factor	≥0.99
	Input Overvoltage Protection	490±10Vac
	Input Undervoltage Protection	270±10Vac
DC Output	Rated Output Power	20kW
	Output Voltage Range	150Vdc ~ 1000Vdc
	Output Current Range	0.5-67A
	Output Constant Power Range	When output voltage is 150-1000Vdc, constant 30kW will output
	Peak Efficiency	≥ 96%
	Soft Start Time	3-8s
	Short Circuit Protection	Self-rollback protection
	Voltage Regulation Accuracy	≤±0.5%
	THD	≤5%
	Current Regulation Accuracy	≤±1%
	Current Sharing Imbalance	≤±5%
Operation Environment	Operating Temperature (°C)	-40˚C ~ +75˚C, derating from 55˚C
	Humidity (%)	≤95% RH, non-condensing
	Altitude (m)	≤2000m, derating above 2000m
	Cooling method	Fan cooling
Mechanical	Standby Power Consumption	<10W
	Communication Protocol	CAN
	Address Setting	Digital screen display, keys operation
	Module Dimension	46021884mm (LWH)
	Weight (kg)	≤ 13Kg
Protection	Input Protection	OVP, OCP, OPP, OTP, UVP, Surge protection
	Output Protection	SCP, OVP, OCP, OTP, UVP
	Electrical Insulation	Insulated DC output and AC input
	MTBF	500 000 hours
Regulation	Certificate	UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Class B
Regulation	Safety	CE, TUV

Core features

The LRG1K0100G DC DC charger module is the inner power module for DC charging stations (piles), and convert AC and DC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as 150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.

The 30kW DC Liquid Cooling Charging Module LRG1K0100G is equipped with a POST (power on self-test) function, AC or DC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.

REG75035 20kw 750V 3Phase
REG75050 20kw 750V 3Phase
REG75050A 20kw 750V 3Phase
REG1K0100 30kw 3Phase
REG75020S 7kw AC DC
CEG75050 20kw DC DC
HEG75050 20kw
BEC75025 15kw
BEC1K0135G 40kW DC DC
BEC900280G 150kW DC DC
BSG1K037G V2G 11kW
BEG75050 15kW V2G
BEG1K075 22kW V2G AC DC
REG1K0135A2 30kw AC/DC Charging Module
BEG1K0110G Infypower Module 62.5KW Charging Module
REG1K0100A2 30kw AC DC Power Module for Fast DC Charging Station
BEG1K0110G 62.5kW Bidirectional AC DC Converter Power Module for DC Charger Station
LBG1K0120G 35kW Bidirectional AC DC Converter Power Module
LRG1K0135G 40KW 1000V AC DC Rectifier Module EV Charger Module
LCG1K0135G 40KW 1000V DC DC Converter Module EV Charging Module
REG1K070 20kw EV Charging Module AC DC Power Module
REG1K0100A2 30kw AC DC Power Module for Fast DC Charging Station
BEG1K0100 30kW EV Charging Module AC DC Power Module
REG1K0135 40kw Power Module for Liquid Cooled Charging Station
Infypower CEG1K0100G 30kw MPPT DC DC Power Module for Solar Storage Battery Charging

Advantages

Multiple Options

High power as LRG1K0100G 40KW Liquid Cooling Charging Module Charging Module

Output voltage up to 1000V

High Reliability

Overall temperature monitoring
Defenses of moisture, salt spray and fungus
MTBF > 100,000 hours

Secure and Safe

Wide input voltage range 270~480V AC
Wide working temperature range -30°C~+50°C

Low Energy Consumption

Unique sleep mode, less than 2W power
High conversion efficiency up to 96%
Intelligent parallel mode, working with the best efficiency

Applications

1,The 30kw DC DC charger modules LRG1K0100G 30KW can be used on DC fast charging stations for EVs and E-buses.

2,the LRG1K0100G 30KW AC DC charger module is equipped with input overvoltage protection, undervoltage alarming, output overcurrent and short circuit protection functions. The charger modules can be connected in a parallel system, allowing for a hot swapping and easier maintenance. This also ensures the system applicability and reliability.
3,The Bidirectional charger module LCR100040A 30KW is the inner power module for DC charging stations (piles), and convert AC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as 200VDC-500VDC/300VDC-750VDC/150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.

4,The LRG1K0100G 30KW charger module is equipped with a POST (power on self-test) function, AC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.

5,1000V 40kW DC DC EV Charger Power Module LRG1K0100G 30KW EV Fast Charger Station.40kw charging module 1000v emc class b rectifier ev charger power module
