CEG75050 20kW 750V DC DC MPPT Power Converter Solar EV Charging Station Module

CEG75050 20kW Constant EV Power Charger Module Supply,MPPT Solar Inverter DC/DC EV Charging 20kw Power Module Solar MPPT Function To Introduce Solar Panel DC Input ACDC Rectifier Module.CEG75050 MPPT Solar Power Module is the DC input converter, it can been used for EV charger with DC bus input. DC output voltage range from 150 to 750VDC, 20kW Power Module. And also integrate the solar power MPPT function, can input solar power directly.

Model No.: CEG1K0100G

Input Voltage: 300Vdc ~ 825Vdc

Rated Output Power: 20kW

Output Voltage Range: 150Vdc ~ 750Vdc

Peak Efficiency: >95.5%

Power Factor: ≥0.99

Current Regulation Accuracy: ≤±1%

Communication Protocol: CAN

Operating Temperature: －40℃～＋75℃

Inquiry WhatsApp Skype Email

Product Detail

Product Tags

ADVANCED TECHNOLOGY

The CEG75050 20kW Solar Charging Module MPPT Solar Power Module CEG75050 is isolated design, supporting hot plug, with output reverse irrigation isolation, to ensure personal safety and the safety of the EV Charger system.

High Efficiency and Energy Conservation

Wide output constant power range

Ultra-low standby power consumption

Ultra-wide operating temperature

ULTRA WIDE OUTPUT VOLTAGE RANGE
COMPATIBLE WITH EVERY EV BATTERY CAPACITY REQUIREMENTS

50-1000V ultra wide output range, meeting car types in the marketand adapt to high voltage EVs in future.

● MIDA PV MPPT Charging Module CEG75050 20kW Compatible with the existing 200V-800V platform and provides full power charging for future development above 900V which is able to avoid investment on high voltage EV charger upgrade construction.

● MIDA Solar EV Power Module CEG75050 20kW Support CCS1, CCS2, CHAdeMO, GB/T and energy storage system.

● MIDA MPPT Charger Module CEG75050 20kW can meet the future trend of high-voltage charging of electric vehicles, compatible with various charging applications and car types.

INTELLIGENT CONTROL FOR SAFE AND
RELIABLE CHARGING

20KW EV Charger Module

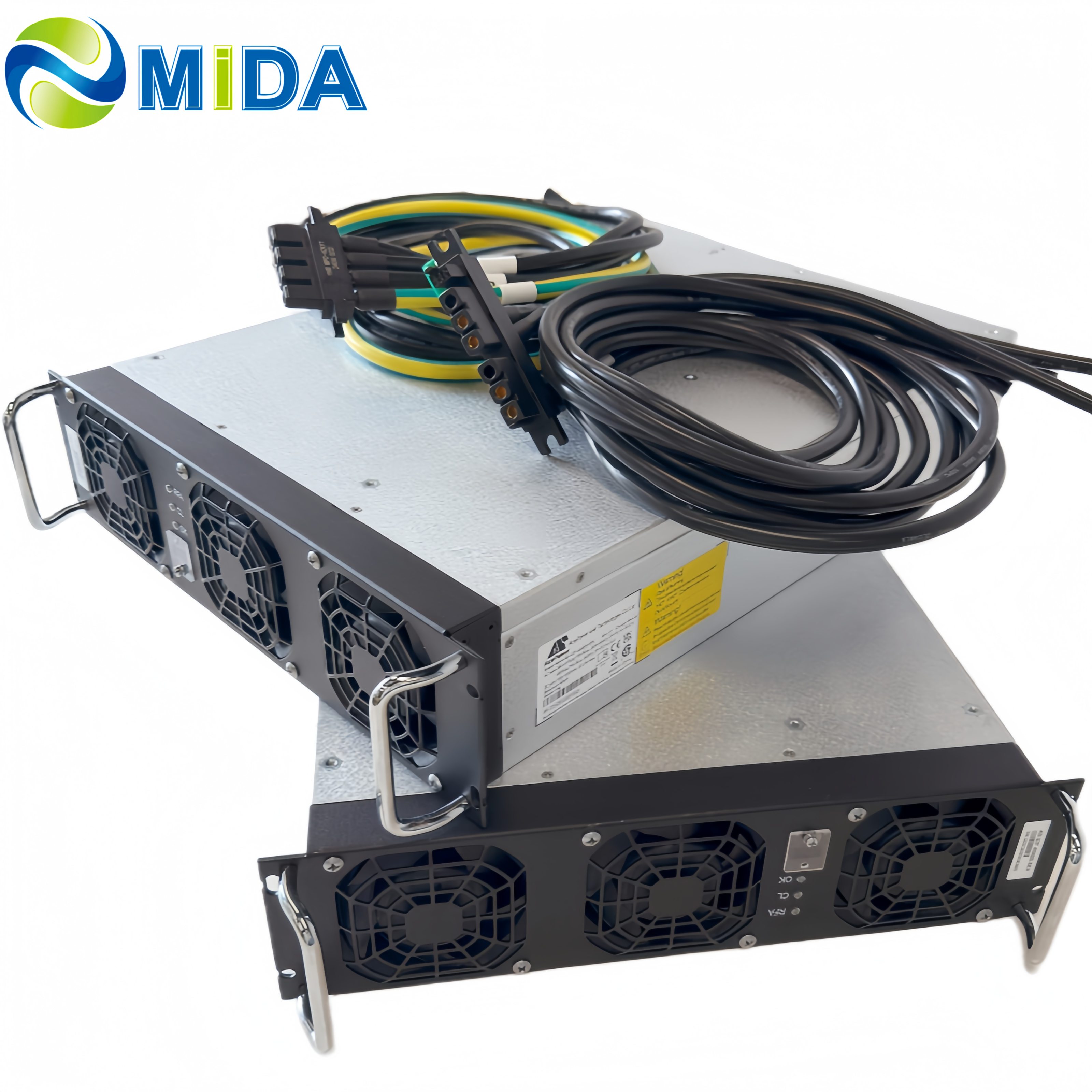

20KW EV Charger Module ( two-input)

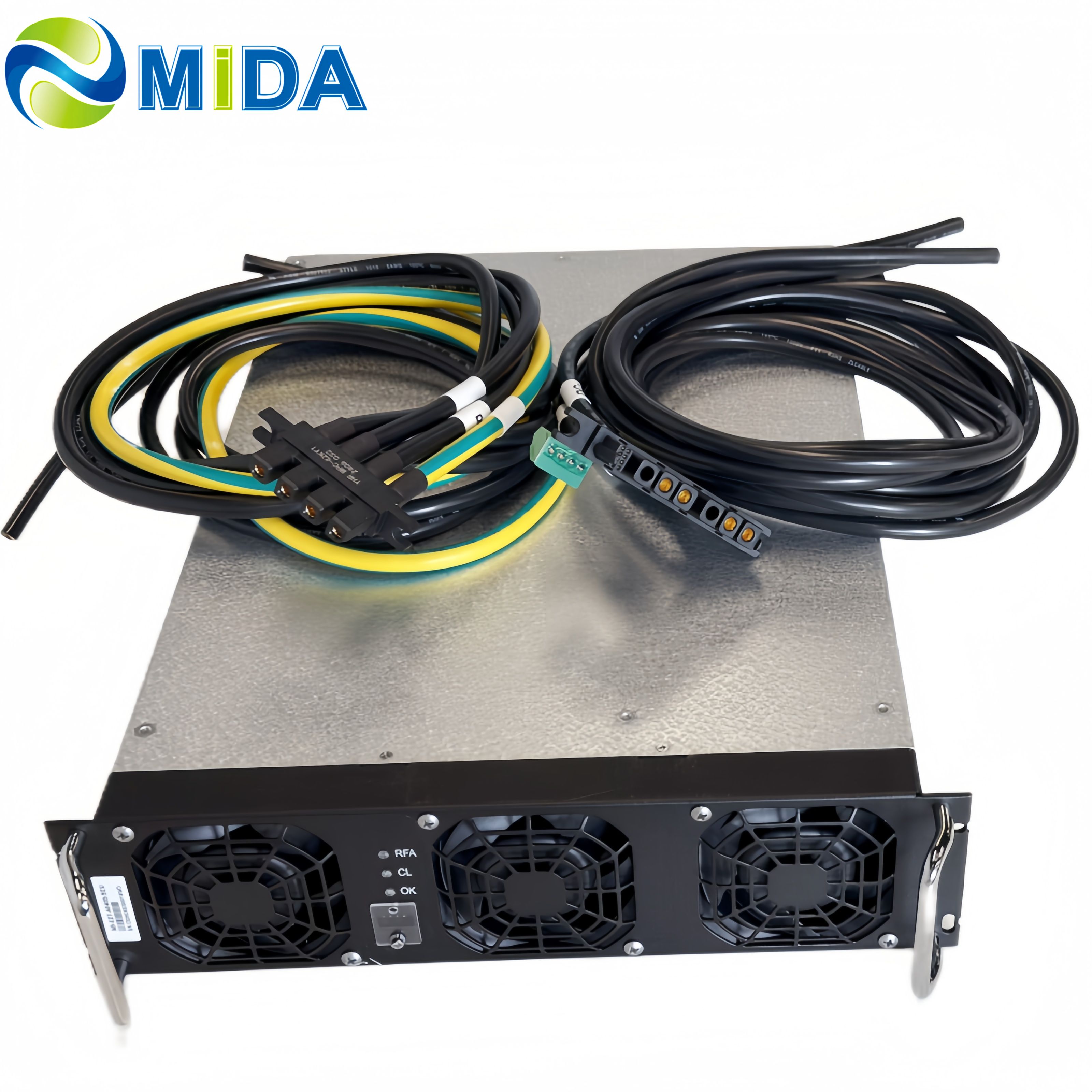

30KW EV Charger Module

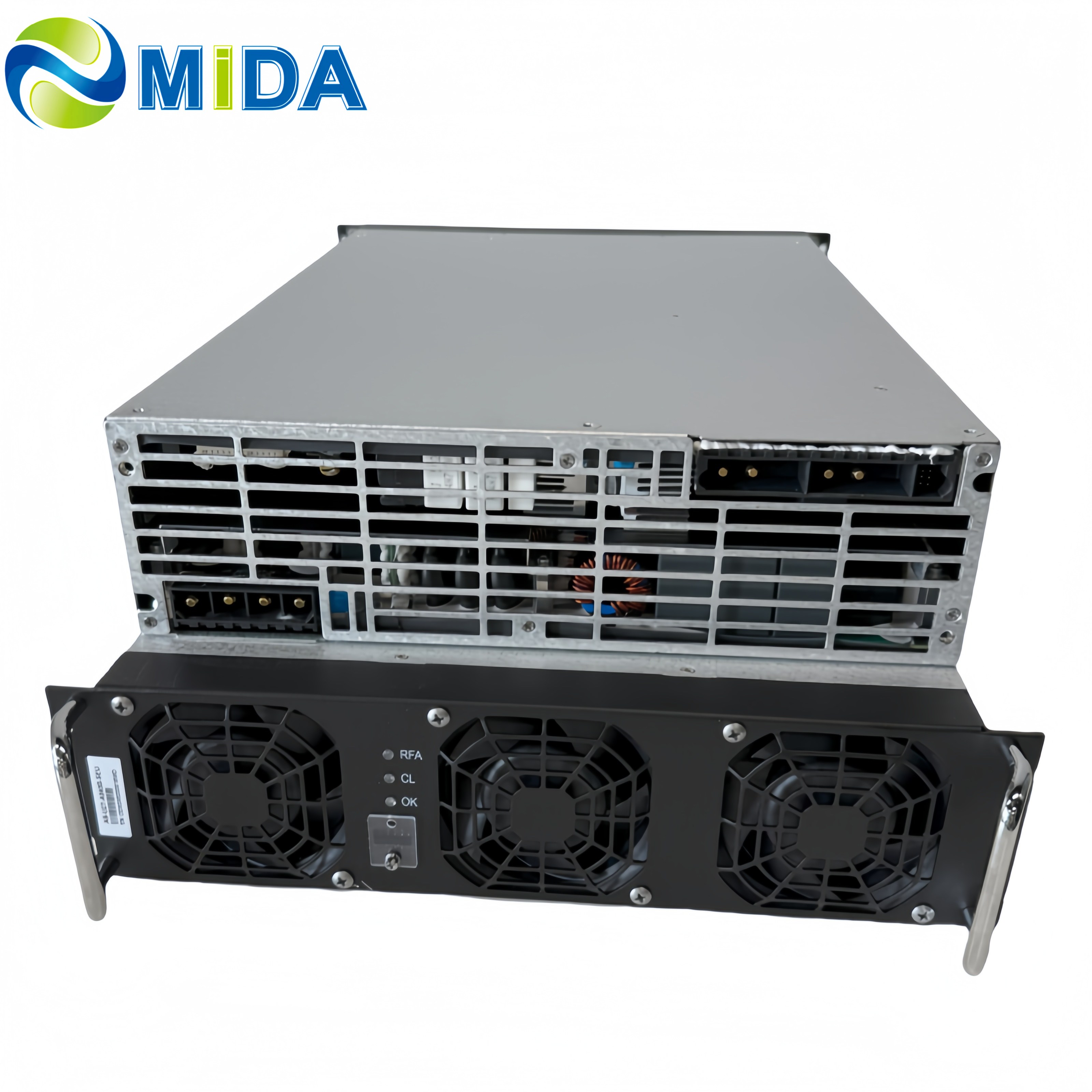

40KW EV Charger Module

Specifications

20KW CEG75050 20kW MPPT DC Charging Module
Model No.		CEG75050 20kW
AC Input	Input Rating	260Vdc ~ 900Vdc
	AC Input Connection	3L + PE
	Input Frequency	50±5Hz
	Input Power Factor	≥0.99
	Input Overvoltage Protection	300±10Vdc
	Input Undervoltage Protection	825±10Vdc
DC Output	Rated Output Power	20kW
	Output Voltage Range	150Vdc ~ 750Vdc
	Output Current Range	0.5-67A
	Output Constant Power Range	When output voltage is 150-1000Vdc, constant 30kW will output
	Peak Efficiency	≥ 96%
	Soft Start Time	3-8s
	Short Circuit Protection	Self-rollback protection
	Voltage Regulation Accuracy	≤±0.5%
	THD	≤5%
	Current Regulation Accuracy	≤±1%
	Current Sharing Imbalance	≤±5%
Operation Environment	Operating Temperature (°C)	-40˚C ~ +75˚C, derating from 55˚C
	Humidity (%)	≤95% RH, non-condensing
	Altitude (m)	≤2000m, derating above 2000m
	Cooling method	Fan cooling
Mechanical	Standby Power Consumption	<10W
	Communication Protocol	CAN
	Address Setting	Digital screen display, keys operation
	Module Dimension	437.530084mm (LWH)
	Weight (kg)	≤ 15Kg
Protection	Input Protection	OVP, OCP, OPP, OTP, UVP, Surge protection
	Output Protection	SCP, OVP, OCP, OTP, UVP
	Electrical Insulation	Insulated DC output and AC input
	MTBF	500 000 hours
Regulation	Certificate	UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Class B
Regulation	Safety	CE, TUV

Core features

1,The 20kw MPPT charger module CEG75050 20kW is the inner power module for DC charging stations (piles), and convert AC energy into DC in order to charge vehicles. The charger module CEG75050 20kW takes a 3-phase current input and then outputs the DC voltage as 200VDC-500VDC/300VDC-750VDC/150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.

2,The charger module CEG75050 20kW is equipped with a POST (power on self-test) function, AC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.

3,MIDA Power Module CEG75050 20kW has prominent advantages in the two major industries of ultra-high full-load operating temperature and ultra-wide constant power range. At the same time, high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption and good EMC performance are also the main characteristics of the ev charging module.

4,Standard configuration of CAN/RS485 communication interface, allows easy data transferring with external devices. and Low DC ripple causes minimum effects on the battery lifespan.MIDA EV charger module uses DSP (digital signal processing) control technology, and is fully numerically controlled from input to output.

Advantages

Multiple Options

High power as CEG75050 20kW Solar MPPT Charging Module

Output voltage up to 750V

High Reliability

Overall temperature monitoring
Defenses of moisture, salt spray and fungus
MTBF > 100,000 hours
Input THDI < 3%, input power factor reaches 0.99 and overall efficiency reaches 95% and above.

Secure and Safe

Wide input voltage range 270~480V AC
Wide working temperature range -30°C~+50°C

Low Energy Consumption

Unique sleep mode, less than 2W power
High conversion efficiency up to 96%
Intelligent parallel mode, working with the best efficiency

Wide output voltage range:

200VDC-500VDC, 300VDC-750VDC, 150VDC-1000VDC (adjustable), is able to meet various voltage demands of different charging requirements.

High Protection:

The charger module CEG75050 20kW is equipped with input overvoltage protection, undervoltage alarming, output overcurrent and short circuit protection functions..

High Power Density

System space is saved due to a high power density, and each module has a power of CEG75050 20kW Power Module
Low DC ripple causes minimum effects on the battery lifespan

High Papplicability and Reliability

The PV Converter charger modules CEG75050 20kW can be connected in a parallel system, allowing for a hot swapping and easier maintenance. This also ensures the system applicability and reliability.

Applications

1,Flexible, reliable, friendly charger module CEG75050 20kW for EV charging station. MIDA series EV DC charging power module is key power part of EV Fast Charger and converts AC to DC supply, which would be ready for CCS, CHAdeMO, GB/T system integration.

2,The charger modules CEG75050 20kW can be used on DC fast charging stations for EVs and E-buses.
Note: The charger module does not apply to on-board chargers (inside cars) .
