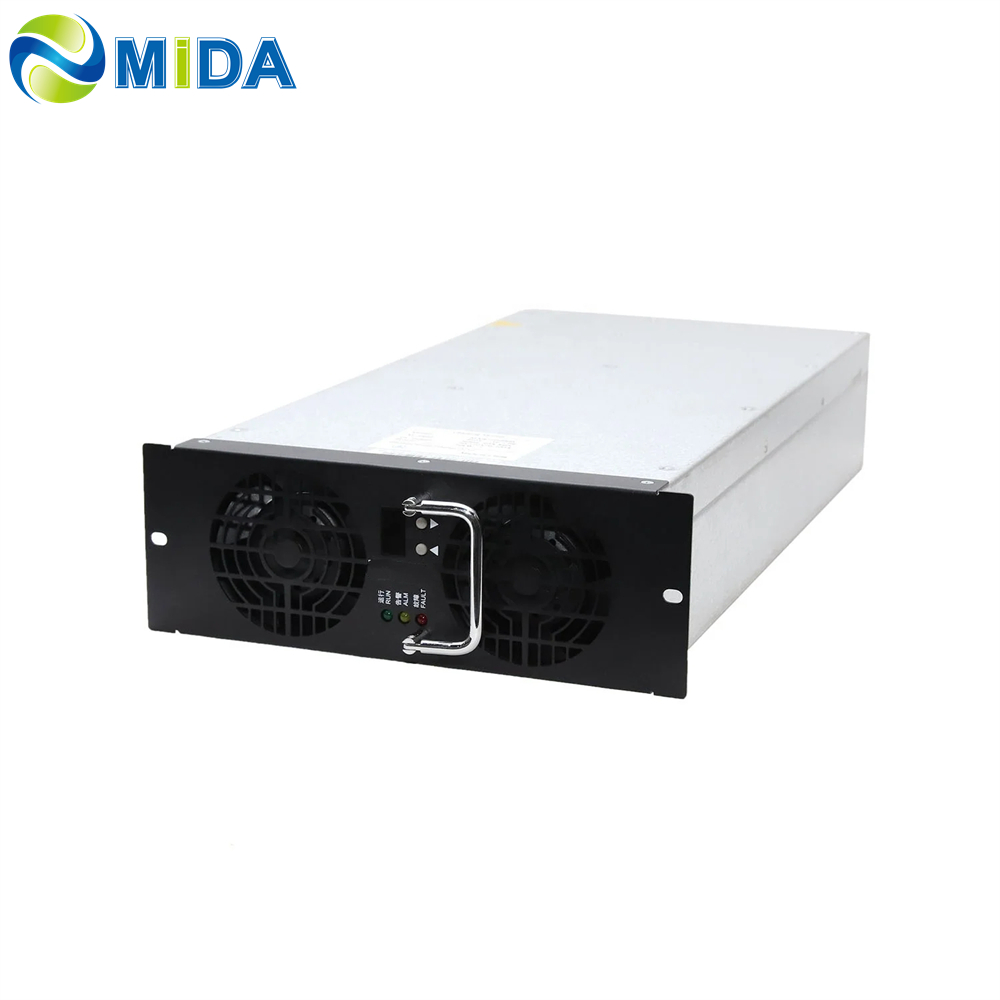

20kW DC DC Charging Module UXC75030B Rectifier EV Power Module

UXC75030B 20kW Bidirectional DC DC Charge Module Discharge Power Module
20kW DC DC EV Charging Module DC Power Converter ya DC Charger Station


  • Nambala ya Model:UXC75030B
  • Mphamvu yamagetsi:300Vdc ~ 850Vdc
  • Mphamvu Zotulutsa:20 kW
  • Mtundu wa Voltage:200Vdc ~ 750Vdc
  • Kuchita Bwino Kwambiri:≥ 96%
  • Mphamvu ya Mphamvu:≥0.99
  • Kulondola Kwamalamulo Pano:≤±1%
  • Communication Protocol:CAN
  • Kutentha kwa Ntchito:－40℃～＋75℃
    • WhatsApp Skype Imelo

    Tsatanetsatane wa Zamalonda

    Zolemba Zamalonda

    ADVANCED TECHNOLOGY

    UXC75030B Charging Module iyi imathandizira mawonekedwe a DC ndi DC apawiri, omwe amaphatikiza kulipiritsa batire ndi gridi yamagetsi ndi kulipiritsa galimoto ndi batire. Nthawi yomweyo, imakwaniritsa zofunikira za magawo atatu ogwirizana a State Grid.

    5

    Kuchita Bwino Kwambiri ndi Kusunga Mphamvu

    2

    Lonse linanena bungwe mosalekeza mphamvu osiyanasiyana

    1

    Kugwiritsa ntchito mphamvu zotsika kwambiri

    3

    Kutentha kwakukulu kwa ntchito

    EV-Charging-Module-10

    20KW EV Charger Module

    20KW EV Charger Module (zolowetsa ziwiri)

    30KW EV Charger Module

    40KW EV Charger Module

    20kw EV Charging Power Module

    ULTRA WIDE OUTPUT VOLTAGE RANGE
    ZOGWIRITSA NTCHITO ZOFUNIKA ZOFUNIKA ZOTHANDIZA ZA BATTERY ILIYONSE

    50-1000V Ultra wide output range, kukumana mitundu yamagalimoto pamsika ndikusinthira ku ma EV okwera kwambiri mtsogolo.

    ● Imagwirizana ndi pulatifomu ya 200V-800V yomwe ilipo ndipo imapereka kulipiritsa mphamvu zonse za chitukuko chamtsogolo pamwamba pa 900V zomwe zingathe kupeŵa ndalama zopangira zowonjezera zowonjezera magetsi a EV.

    ● Thandizani CCS1, CCS2, CHAdeMO, GB/T ndi dongosolo losungira mphamvu.

    ● Kumanani ndi zomwe zikuchitika m'tsogolomu pakulipiritsa kwamphamvu kwambiri kwa magalimoto amagetsi, omwe amagwirizana ndi ma charger osiyanasiyana komanso mitundu yamagalimoto.

    pic2 (1)

    KULAMULIRA MWANZERU KUTI WOTETEZEKA NDIPO
    ZOCHITIKA ZOTHANDIZA ZOTHANDIZA

    pic6

    Zofotokozera

    20KW DC Charging Module (zolowera ziwiri)
    Chitsanzo No. UXC75030B
    Kulowetsa kwa AC Zolowera 285Vac ～ 475Vac, magawo atatu + Chitetezo cha Dziko
    Kulumikiza kwa AC 3L + PA
    Kulowetsa pafupipafupi 50/60 ± 5Hz
    Lowetsani Mphamvu ya Mphamvu ≥0.99
    Input Overvoltage Protection 490±10Vac
    Input Undervoltage Protection 270±10Vac
    Zotsatira za DC Adavoteledwa Mphamvu 20 kW
    Kutulutsa kwa Voltage Range 300Vdc ~ 850Vdc
    Linanena bungwe Current Range 0.5-67A
    Output Constant Power Range Pamene linanena bungwe voteji ndi 300-1000Vdc, zonse 20kW adzakhala linanena bungwe
    Kuchita Bwino Kwambiri ≥ 96%
    Nthawi Yoyambira Yofewa 3-8s
    Chitetezo Chachifupi Chozungulira Chitetezo chodzibweza
    Kulondola kwa Voltage Regulation ≤± 0.5%
    THD ≤5%
    Kulondola Kwamalamulo Panopa ≤±1%
    Kusalinganika Kwamagawana Kwamakono ≤±5%
    Ntchito
    Chilengedwe    		 Kutentha kwantchito (°C) -40˚C ~ +75˚C, kuchoka pa 55˚C
    Chinyezi (%) ≤95% RH, yosasunthika
    Kutalika (m) ≤2000m, derating pamwamba 2000m
    Njira yozizira Kuziziritsa kwa fan
    Zimango Standby Power Kugwiritsa <10W
    Communication Protocol CAN
    Kukhazikitsa Adilesi Mawonekedwe azithunzi za digito, ntchito ya makiyi
    Module Dimension 460*218*84mm (L*W*H)
    Kulemera (kg) ≤ 13Kg
    Chitetezo Input Chitetezo OVP, OCP, OPP, OTP, UVP, Chitetezo cha Surge
    Chitetezo Chotuluka SCP, OVP, OCP, OTP, UVP
    Magetsi Insulation Kutulutsa kwa insulated DC ndi kulowa kwa AC
    Mtengo wa MTBF 500 000 maola
    Malamulo Satifiketi UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Gawo B
    Chitetezo CE, TUV

    Zofunika kwambiri

    UXC75030B DC DC charger module ndi gawo lamphamvu lamkati la malo opangira ma DC (milu), ndikusintha mphamvu za AC ndi DC kukhala DC kuti azilipiritsa magalimoto. Chipangizo chojambulira chimatenga gawo la 3-gawo lapano ndikutulutsa mphamvu ya DC ngati 150VDC-1000VDC, yokhala ndi chosinthira cha DC kuti chikwaniritse zofunikira zosiyanasiyana za batire.

    20kW DC Bidirectional charger module UXC75030B ili ndi ntchito ya POST (mphamvu yodziyesa yokha), AC kapena DC kuyika pa / pansi pa chitetezo chamagetsi, kutulutsa kutetezedwa kwamagetsi, kuteteza kutentha kwambiri ndi zina. Ogwiritsa ntchito amatha kulumikiza ma module opangira ma charger angapo mofananira ndi kabati imodzi yamagetsi, ndipo timatsimikizira kuti ma charger athu ambiri a EV ndi odalirika, ogwira ntchito, ogwira ntchito, ndipo amafunikira kukonza pang'ono.

    Ubwino wake

    Zosankha Zambiri

    Mphamvu yayikulu ngati UXC75030B 20kW Bidirectional Charging Module
    Kutulutsa mphamvu mpaka 1000V

    Kudalirika Kwambiri

    • Kuwunika kutentha kwathunthu
    • Kuteteza chinyezi, kutsitsi mchere ndi bowa
    • MTBF> 100,000 maola

    Otetezeka ndi Otetezeka

    Wide athandizira voteji osiyanasiyana 270 ~ 480V AC
    Kutentha kwakukulu kwa ntchito -30 ° C ~ + 50 ° C

    Kugwiritsa Ntchito Mphamvu Zochepa

    Kugona kwapadera, mphamvu zosakwana 2W
    Kutembenuza kwakukulu mpaka 96%
    Njira yofananira yanzeru, yogwira ntchito bwino kwambiri

    Mapulogalamu

    1, The 20kw DC DC charger modules UXC75030B angagwiritsidwe ntchito pa DC fast charging siteshoni ma EVs ndi E-mabasi.

    2, gawo la UXC75030B 20kw DC charger module lili ndi chitetezo chowonjezera chamagetsi, chowopsa cha undervoltage, magwiridwe antchito opitilira muyeso komanso chitetezo chachifupi. Ma module a charger amatha kulumikizidwa munjira yofananira, kulola kusinthana kotentha komanso kukonza kosavuta. Izi zimatsimikiziranso kutsimikizika kwadongosolo ndi kudalirika.
    3, Bidirectional charger module UXC75030B ndi gawo lamphamvu lamkati la malo opangira ma DC (milu), ndikusintha mphamvu ya AC kukhala DC kuti muzitha kulipiritsa magalimoto. Gawo la charger limatenga gawo la 3-gawo lapano ndikutulutsa mphamvu ya DC ngati 200VDC-500VDC/300VDC-750VDC/150VDC-1000VDC, yokhala ndi chosinthika cha DC kuti ikwaniritse zofunikira zosiyanasiyana za batire.

    4, UXC75030B charger module ili ndi ntchito ya POST (mphamvu pa kudziyesa), kulowetsa kwa AC pa / pansi pa chitetezo chamagetsi, kutulutsa mphamvu yamagetsi, kuteteza kutentha kwambiri ndi zina. Ogwiritsa ntchito amatha kulumikiza ma module opangira ma charger angapo mofananira ndi kabati imodzi yamagetsi, ndipo timatsimikizira kuti ma charger athu ambiri a EV ndi odalirika, ogwira ntchito, ogwira ntchito, ndipo amafunikira kukonza pang'ono.

    5,1000V 20kW DC DC EV Charger Power Module UXC75030B ya 150kW EV Fast Charger Station.20kw charger module 1000v emc class b rectifier ev charger power module
